Tungsten Crucibles: Manufacturing and Applications

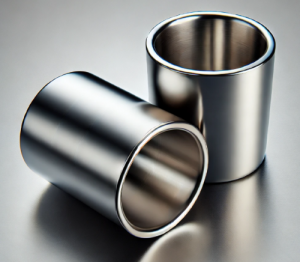

What Is A Tungsten Crucible?

A tungsten crucible is made from tungsten, a metal renowned for its high melting point of 3422°C (6192°F), the highest of any metal. Crucibles are typically used to melt, heat, or hold materials at high temperatures. Tungsten crucibles are commonly used in processes that involve melting or processing materials that require temperatures above the melting point of conventional metals like steel or aluminum.

Properties of Tungsten Crucibles

Tungsten crucibles possess a range of exceptional properties that make them suitable for high-performance applications:

• High Melting Point: Tungsten’s extremely high melting point (3422°C) allows it to perform reliably in high-temperature environments where other metals would melt or degrade.
• Thermal Stability: Tungsten crucibles maintain their integrity even when exposed to rapid temperature changes, making them resistant to thermal shock.
• Corrosion Resistance: Tungsten is highly resistant to many corrosive materials, including acids and alkalis, ensuring the crucible maintains its strength and durability in harsh chemical environments.
• High Density and Strength: Tungsten’s high density (19.25 g/cm³) and strength allow the crucible to withstand the physical stresses and pressures encountered during high-temperature processes.
• Low Vapor Pressure: Tungsten has a very low vapor pressure, meaning it does not evaporate at high temperatures, which is particularly important in vacuum environments.

How Tungsten Crucibles Are Made

Tungsten crucibles are manufactured through four main processes: spinning, stamping, forging, and sintering.

1. Spinning: Tungsten billets are hot-rolled into thin sheets, which are then shaped into crucibles by spinning on a machine, controlled at 1000°C with annealing for plasticity.
2. Stamping: A cost-efficient method that includes blanking, bending, and deep drawing to create hollow crucibles, offering good surface quality and dimensional accuracy.
3. Forging: Involves heating tungsten rods to 1400-1600°C, then repeatedly forging and annealing them to achieve near-theoretical density and high tensile strength.
4. Sintering: Tungsten powder is compressed and heated in an induction furnace at 2200-2400°C to form crucibles with high density and structural integrity.

Further reading: How Is A Tungsten Crucible Made?

How to Use Tungsten Crucibles

Tungsten crucibles find widespread use across several industries. Some of the most common applications of tungsten crucibles include:

1. Metal Casting and Smelting

Tungsten crucibles are widely used in the casting and smelting of precious metals like gold, platinum, and silver, as well as other high-melting-point materials. The ability of tungsten to withstand temperatures far exceeding the melting points of many metals ensures that molten materials can be contained and processed without the crucible degrading. This property is especially useful in industries such as jewelry production and metal refining, where maintaining the purity of the molten material is critical.

2. Semiconductor Manufacturing

In the semiconductor industry, tungsten crucibles are commonly used in processes such as vapor deposition, where thin layers of metal are deposited onto substrates at high temperatures. Tungsten crucibles can hold molten metals or alloys, which are then vaporized to create thin films on silicon wafers for semiconductor production. Tungsten’s high melting point and purity are crucial for achieving the quality and consistency required in semiconductor fabrication.

3. Glass and Ceramic Production

The glass and ceramics industries use tungsten crucibles to melt and process high-quality glass and ceramic materials at extremely high temperatures. These industries require crucibles that can endure prolonged exposure to molten materials while maintaining structural integrity, a function that tungsten crucibles perform effectively. Their thermal conductivity ensures that the molten glass or ceramics are evenly heated, reducing the likelihood of defects in the final product.

4. Crystal Growth

In fields like electronics and materials science, tungsten crucibles are used in crystal growth applications, particularly for growing semiconductor crystals such as silicon or germanium. The high temperature required for crystal growth necessitates the use of materials that can withstand prolonged exposure to heat without breaking down, making tungsten the material of choice. Additionally, tungsten’s resistance to contamination helps ensure that the crystals grown in the crucibles remain pure.

5. Laboratory Research

Tungsten crucibles are commonly used in laboratory research for high-temperature experiments. Whether for testing new materials, conducting chemical reactions, or simulating extreme environmental conditions, researchers rely on tungsten crucibles for their stability and resistance to thermal shock. The crucibles allow for precise control of temperature and conditions, making them indispensable for high-precision scientific work.

6. Vacuum Coating and Sputtering

Tungsten crucibles are also used in the vacuum coating industry, particularly in sputtering and vapor deposition processes. In these processes, metals or other materials are vaporized and deposited onto substrates under a vacuum. The high melting point and low vapor pressure of tungsten make it ideal for holding the target material, ensuring consistent material deposition during the process.

Conclusion

Tungsten crucibles are indispensable tools in industries requiring high-temperature performance, chemical resistance, and mechanical stability. From metallurgy to aerospace and electronics, the ability of tungsten crucibles to withstand extreme conditions makes them essential in producing high-quality materials and components. They will remain a vital part of manufacturing processes that demand the highest levels of precision and reliability. For more information, please check Advanced Refractory Metals (ARM).
