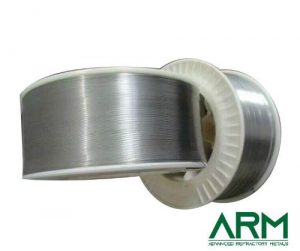

Molybdenum Cutting Wire for EDM

1. What is EDM?

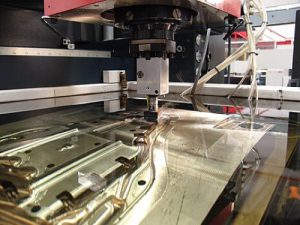

Electrical Discharge Machining (EDM) is a precision machining process that uses electrical discharges (sparks) to remove material from a workpiece. In this process, a series of rapid electrical discharges are directed between an electrode and the material, causing localized melting and vaporization.

The process is ideal for machining hard or electrically conductive materials that are difficult to work with using traditional cutting methods. EDM can achieve extremely fine details and tight tolerances, making it a popular choice for complex part geometries and high-precision components.

[1]

2. Why Use Molybdenum Wire in EDM?

Molybdenum wire is a popular choice in Wire EDM (WEDM), a type of EDM process where the electrode is a thin, continuous wire that moves through the workpiece. Molybdenum’s properties make it an ideal material for this application, as it offers superior performance when precision cutting metals such as stainless steel, titanium, and high-strength alloys.

Further reading: Types and Uses of Molybdenum Wire

3. Key Advantages of Molybdenum Wire in EDM

Molybdenum wire offers several key advantages in EDM:

• High Thermal Stability: Molybdenum has a high melting point (about 3,180°C), which makes it ideal for withstanding the intense heat generated by the EDM process. This ensures that the wire remains stable and performs reliably even in high-temperature environments.
• Excellent Surface Finish: The wire’s ability to maintain its shape and strength under high temperatures allows it to produce smooth, precise cuts. This is crucial in applications that require high-quality surface finishes and tight tolerances.
• Low Wear Rate: Molybdenum wire experiences relatively low wear when compared to other wire materials, such as copper or brass. This results in longer tool life and less frequent replacement, improving operational efficiency and reducing costs.
• High Precision and Accuracy: Due to its rigidity and resistance to deformation, molybdenum wire can produce parts with very tight tolerances. This is essential for industries that demand high-precision components, such as aerospace and medical device manufacturing.
• Superior Cutting Speed: Molybdenum wire has a high cutting speed in comparison to alternative wire materials, allowing for faster processing times without compromising on the quality of the final product.

4. Molybdenum Cutting Wire vs Alternatives

While molybdenum wire offers numerous benefits, it is important to compare it to other alternatives commonly used in EDM.

• Copper Wire: Copper is a popular choice for EDM because it has excellent electrical conductivity, leading to faster discharge rates. However, copper wire is more prone to wear and deformation at high temperatures, which can affect precision and result in higher tool replacement costs. Molybdenum, in contrast, provides a better balance of performance and longevity, making it a more cost-effective choice in many applications.
• Brass Wire: Brass is another widely used wire in EDM, particularly in general-purpose applications. While brass has good conductivity and is cost-effective, it is not as durable as molybdenum in high-temperature environments. Molybdenum wire excels in precision cutting and can maintain its form longer than brass, making it the preferred choice for high-performance, high-precision machining.
• Tungsten Wire: Tungsten wire has a similar high-temperature resistance to molybdenum, but it is generally more expensive. Molybdenum, being less costly, offers a more economical solution while still maintaining excellent heat resistance and cutting accuracy.

In comparison to these alternatives, molybdenum wire offers a superior balance of cost, durability, and performance, making it particularly beneficial for high-precision EDM applications.

5. Applications of Molybdenum Wire EDM

Molybdenum wire EDM is used in a wide range of industries due to its precision, durability, and versatility. Some of the key applications include:

1. Aerospace: Molybdenum wire EDM is used to create complex components for aircraft engines, including turbine blades, seals, and other high-performance parts that require tight tolerances and high heat resistance.
2. Medical Devices: In the medical field, molybdenum wire EDM is employed to manufacture delicate and precise surgical tools, implants, and diagnostic devices, where accuracy is paramount.
3. Tooling and Molds: Molybdenum wire is often used to produce tooling and molds for industries such as automotive manufacturing, where precision is critical for ensuring quality and performance.
4. Automotive: The automotive industry uses molybdenum wire EDM to create complex components such as high-performance engine parts and sensors that require precision and high durability.
5. Electronics: In electronics, molybdenum wire is used to cut small, intricate parts with tight tolerances, such as microelectromechanical systems (MEMS) and other electronic components.

6. Conclusion

Molybdenum wire is an essential material in the EDM process, particularly for industries that require high-precision, high-performance machining. Its superior thermal stability, low wear rate, and excellent cutting speed make it a preferred choice over alternatives like copper, brass, and tungsten. Whether it’s aerospace, medical, or automotive applications, molybdenum wire EDM offers unmatched accuracy, durability, and cost-effectiveness. For more molybdenum products, please check Advanced Refractory Metals (ARM).

Reference:

[1] Electrical discharge machining. (2024, October 21). In Wikipedia. https://en.wikipedia.org/wiki/Electrical_discharge_machining
